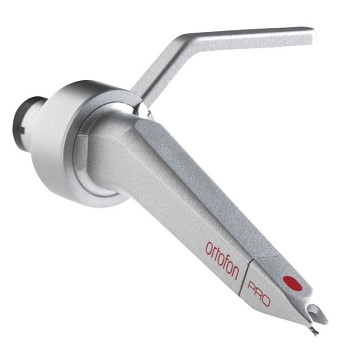

Ortofon Concorde Pro DJ Cartridge - Curved S-Tonearm

Ortofon Concorde Pro DJ Cartridge - Curved S-Tonearm

Our Part#:Concorde Pro
Brand:Ortofon
$99.00
Request Stock Alert via Waiting List

Reward Points

99 points can be awarded to your webstore account (see FAQ).

The Pro Series of cartridges provides a great balance of sound quality with tracking ability, for virtually any style of music. With flat, transparent sound across the spectrum and Excellent handling ability, the Pro Series represents one of the longest running values in DJ cartridges.


Specifications:
Cartridge weight 18.5 grams
Type of stylus 0.7 mil spherical diam.
Frequency response 20-18,000Hz.
Output voltage 1000 Hz/5cm/sec > 5 mV
Channel seperation at 1000 Hz >20 dB
Channel balance at 1000 Hz <1.5 dB
Dynamic compliance horizontal 7 micrometer/mN
Dynamic compliance vertical 7 micrometer/mN
Recommended tracking force 30-50 mN (3-5 grams)
Optimum tracking force 40 mN (4 grams)
Tracking ability at 315 Hz (lateral) 70 micrometer
Vertical tracking angle 20°
DC resistance 750 Ohm
Recommended load resistance 47 K. Ohm
Recommended load capacitance 200-600 pF
Cartridge mounting SME only which is any curved ("S" shaped) tonearm.

Manufactured in Denmark
