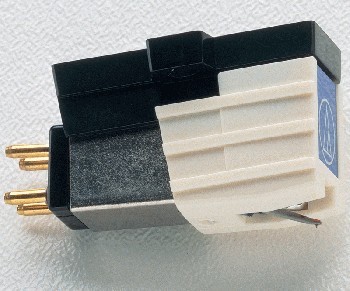

.: ATP-2XN Disco Model DJ Cartridge :.

Includes extra ATP-N2 spare stylus.

Vector-Aligned Dual Magnet design and A-T’s exclusive Paratoroidal signal generator. This unique signal-generating system is composed of a unified, laminated coil core wound with a single piece of wire. Internal mechanical and electrical connections are eliminated, minimizing magnetic losses and assuring better signal transfer. PCOCC wire.

SPECIFICATIONS
Frequency Response	15-22,000 Hz
Channel Separation	23/17 (dB at 1 kHz/10 kHz)
Vertical Tracking Force	3.0-5.0 grams
Stylus Construction	Bonded round shank
Recommended Load Impedance	47,000 ohms
Output	5.3 (mV at 1 kHz, 5 cm/sec)
Channel Balance	1.5 dB
Stylus Shape	0.4 x 0.7 mil bonded elliptical
Cantilever	Alloy tube
Mount	Half-inch
Replacement Stylus	ATP-N2
