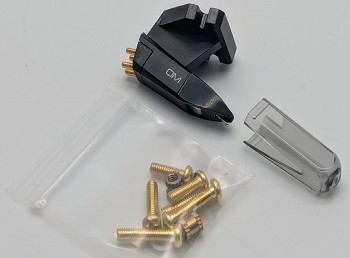

This "famous maker" OM was a coveted, medium level, standard half-inch cartridge supplied as original equipment on finer turntables. Sure you can get cheaper entry-level cartridges, but the great thing we love about this cartridge is that you can 'try out' the elliptical sound with an elliptical stylus, then later, if you so choose, you can upgrade just the needle to any quality level found in our 'Related Products" section at the bottom of this page. This will effectively upgrade you to a 'hybrid' type "OM10", "OM20", "OM30" or "OM40" and is particularly easy to do since the needle slides onto the front of the cartridge. We inspect and pack it here at TurntableNeedles.com in our snap box with extra foam protection along with our mounting hardware valued at $7.
TECHNICAL DATA
Output voltage @ 1000 Hz,5cm/sec.
4 mV
Channel balance @ 1 kHz
2 dB
Channel separation @ 1 kHz
22 dB
Channel separation @ 15 kHz
15 dB
Frequency range
20-25,000 Hz
Frequency response
20-20,000 Hz + 2 / - 3 dB
FIM distortion @ recommendedtracking force, DIN 45.542
< 1%
Tracking ability @ 315Hz @recommended tracking force
65 µm
Compliance, dynamic, lateral
20 m/mN
Japanese 541-DE Stylus type
Elliptical [0.3 x 0.7 bonded diamond]
Stylus tip radius
r/R 8/18 m
Equivalent stylus tip mass
0.5 mg
Tracking force range
1.5-2.0 g (15-20 mN)
Tracking force, recommended
1.75 g (17.5 mN)
Tracking angle
20°
Internal impedance, DC resistance
750 Ohm
Internal inductance
450 mH
Recommended load resistance
47 kOhm
Recommended load capacitance
200-600 pF
Cartridge colour, body/stylus
Black/Black
Cartridge weight
5 g
Replacement stylus unit
Stylus 541-DE
