Ortofon OMB Based Pre-Mounted Cartridge Plug-n-Spin Kit

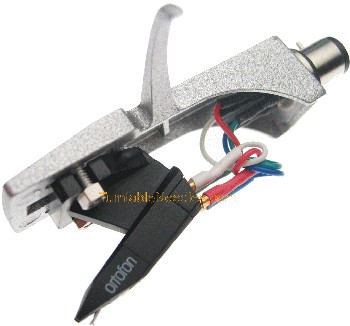

Ortofon OMB10 plug n spin kit Shown w/silver S-arm headshell

Ortofon OMB Based Pre-Mounted Cartridge Plug-n-Spin Kit

Stock#:Ortofon OMB10 S-armSpin
Brand:BLISS™
Complete Solution for an empty tonearm

*Required* Choose Option

shell
With S-arm Shell (Black)
With S-arm Shell (Silver)
With S-arm Shell (Polished) (+$8.00)
Tip Choice(s) help
Genuine Ortofon Stylus 10
Japan-Made BLISS™ bonded Shibata (+$130.00)
All speed kit - Ortofon Stylus 10 & Bliss™78 (+$45.00)
$120.00
Oregon USA Stock - 0-24hr Shipping!

Reward Points

120 points can be awarded to your webstore account (see FAQ).

Ortofon OMB 10 based plug-n-spin kit.

Professionally assembled & aligned to 52mm industry standard overhang in Oregon by BLISS™ using a Genuine Ortofon OMB10 and our headshell.

You will receive a complete solution that is ready to plug into most any "S-shaped" curved tonearm. You can be up and spinning in a few moments. Upon receipt in almost all cases, all you will have to do is:


  • Perform tracking adjustment per below instructions.

For additional details and write-up, please see our Ortofon OMB10 page.
Note that the cartridge arrives mounted to the headshell aligned to a 52mm industry standard. But you may wish to precision-align it to your specific turntable for best performance.


How do I adjust tracking pressure and anti skate?
If you are lucky enough to have these two adjustments, move tracking force counter weight until the needle hovers perfectly balanced above the record. Now rotate the dial with numbers (not the weight itself) to zero. (this is zero grams pressure on record) then rotate weight AND numbers together to the recommended tracking pressure for your needle. Then rotate anti skate to have a setting of equal value. Basically you want the least amount of needle pressure pushing down on the record as possible without it skipping or sounding bad. That will give you the longest life from your needle and records.

NOTE: Anti skate is adjusting side to side pressure WITHIN GROOVE of record. Tracking pressure is how hard the needle is pushing down inside the groove.


If your tonearm has a height-adjustable base, make sure the arm is parallel with the record surface.
