VM745xML Standard Mount Turntable Cartridge - Nude MicroLinear | Boron Cantilever

| Public Question about this item?
Be the first to ask here.

VM745xML Standard Mount Turntable Cartridge - Nude MicroLinear | Boron Cantilever

Stock#:VM745xML

Brand:audio-technica®

SHELL

Cartridge only as pictured

mounted on black headshell (+$35.00)

mounted on silver headshell (+$35.00)

$329.00

Request Stock Alert via Wait List

329 points can be awarded to your webstore account (see FAQ).

Description
Reviews
Specs

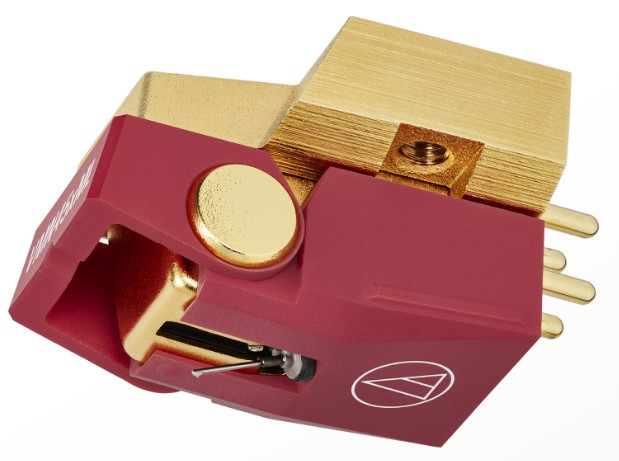

Audio-Technica VM745xML Threaded Turntable Phono Cartridge

The Laser-Cut Micro-Line diamond tip has a very unique feature among stylus cuts. As the ridge wears down to the main part of the stylus it does not lose fidelity like other cuts. Once the ridge wears off, then it is quickly noticeable that it is time to replace. This high end cut is estimated to last 600-800hrs depending on local conditions. The addition of the VM745xML's boron cantilever provides a marked improvement of sound reproduction.

New for 2025 and Beyond:

Audio-Technica AT-VMx Series: Premium Sound, Engineered for Detail

Experience Warmth and Realism in Every Note
The Audio-Technica AT-VMx series redefines high-fidelity vinyl playback with enhanced warmth, realism, and rich musical detail. As a refined evolution of Audio-Technica’s acclaimed dual moving magnet (MM) cartridges, the VMx line delivers an expansive soundstage that brings recordings to life.

Dual Moving Magnet Design for Studio-Accurate Imaging

Like all Audio-Technica MM cartridges, the VMx series mirrors the geometry of the original record-cutting head. Two precisely positioned magnets align with the left and right channels in the stereo groove, ensuring exceptional channel separation and extended frequency response. This faithful signal reproduction captures the spatial depth and dynamics of the original master.

Advanced Generator Technology for Cleaner Audio

At the heart of every VMx cartridge is a paratoroidal coil system, featuring two stacked coils per channel for superior efficiency and reduced distortion. A new center shield plate minimizes crosstalk, preserving a crisp stereo image. The coils are wound with PCUHD® (Pure Copper Ultra High Drawability) wire, enhancing signal purity for richer, more nuanced sound. Fewer coil turns improve transient response, enabling faster reaction to musical dynamics and delivering clean, lifelike audio.

Precision Stylus and User-Friendly Design

The AT-VM745xML features a nude/natural Micro Linear stylus (the same cut as Shure's MicroRidge stylus) and a strong boron cantilever for incredibly faithful audio reproduction quality at a decent price that reliably tracks the groove’s center, offering durability and amazing playback—ideal for better condition vinyl. Installation is simplified with threaded inserts in the cartridge body, requiring just two screws for secure mounting—perfect for modern tonearms. A V-cut in the flip-up stylus guard provides visual alignment guidance, making cueing safer and more precise.

*Key Characteristics of PCUHD®
High Purity: It is a 4N-grade material, meaning it has a copper purity of 99.99% or higher.
Low Oxygen: Through a unique manufacturing process using noble gases rather than gas burners, oxygen content is controlled to 5 ppm or less, which is superior to standard oxygen-free copper.
High Drawability: Its name comes from its extreme malleability, which allows it to be drawn into superfine wires (as thin as 0.04 mm) without breaking or including impurities.
Acoustic Benefits: Audiophiles use it because it is claimed to provide a more detailed soundstage, tighter bass, and improved signal clarity compared to standard stock cables.

Since all AT-VMx and VM Series cartridges share the same body design and have a removable stylus, you can use almost any AT-VMNx or VMN replacement stylus* with any VMx or VM cartridge for easy experimentation with sound characteristics.

AT-VMN10xCB (conical/bonded/aluminum cantilever)
AT-VMN20xEB (elliptical/bonded/aluminum cantilever)
AT-VMN30xEN (elliptical/nude/aluminum cantilever)
AT-VMN40xML (microlinear/nude/aluminum cantilever)
AT-VMN45xML (microlinear/nude/boron cantilever)
AT-VMN50xSH (Shibata/nude/boron cantilever)
AT-VMN60xSL (special line contact/nude/boron cantilever)

* Excludes mono models

Cartridge & Stylus
Frequency Response	20 to 27,000 Hz
Channel Separation	26 dB (1 kHz)
Vertical Tracking Force	20°
Tracking Force	1.8 to 2.2 g (2.0 g standard)
Stylus Construction	Nude Microlinear
Recommended Load Impedance	47 k ohms
Coil Impedance	3.2 k ohms (1 kHz)
DC Resistance	750 ohms
Coil Inductance	480 mH (1 kHz)
Output Voltage	3.7 mV (1 kHz, 5 cm/sec.)
Output Balance	1.0 dB (1 kHz)
Cantilever	0.28 mm (0.011”) diameter solid boron
Static Compliance	20 × 10-6 cm/dyne
Dynamic Compliance	7 × 10-6 cm/dyne (100 Hz)
Dimensions	29.0 mm (1.1”) × 18.3 mm (0.72”) × 17.5 mm (0.69”) (H × W × D)
Accessories Included	·Cartridge installation screws** (M2.6) (10.0 mm (0.39”) × 2, 8.0 mm (0.31”) × 2, 5.0 mm (0.20”) × 2), Washer × 2, Non-magnetic screwdriver, Brush
Threaded Hole	M2.6 × 2
Recommended Load Capacitance	150 to 250 pF
Replacement Stylus	AT-VMN45xML* (sold separately)
Stylus Curvature Radius	2.2 × 0.12 mil
Type	VM
Weight	8.8 g (0.31 oz)
Notes	The replacement stylus of this product is used for AT-VMx series products. In this series, we offer replacement styli with different stylus tip structures and point shapes. *Cartridge installation screws (5.0 mm (0.20”)) x 2 are used to secure the cartridge in the box at the time of purchase. Be sure to keep and not lose these after removing the cartridge from the box. For product improvement, the product is subject to modification without notice.
