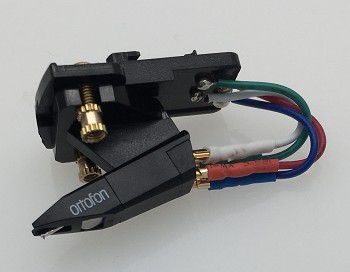

269-611 Type Carrier Sled Adapter W/ Ortofon OMB Cartridge for Dual Turntables
This replacement carrier sled adapter allows for installation of a half-inch (1/2") standard mount cartridge in the below Dual turntables. Best matched with the Ortofon OMB cartridge with needle. (Included) - Includes needle guard (not pictured) Needle included in default option is Bliss 541-DE - matches specs of OEM Stylus 10 (.3x.7 mil Elliptical). This drop in plug n spin kit is assembled with the utmost of care. To preserve your very unique ULM tonearm setup, we remove the ballast weight from the OMB cartridge so the cartridge/needle comes out to 2.6 grams vs. the TKS45E which is 2.6 grams. This provides a great modern solution that will not require you to add mass to the counter weight as would likely be the case with most other cartridges weighing 5+grams. So be careful when other sell this sled alone as a standard mount adaptor for your dual as you will likely run into this problem.
Can be fit on Dual tonearms containing part # 267-051Replacement sled part # 269-611
DUAL 505 & CS-505 Turntable/Record PlayerDUAL 505-1 & CS-505-1 Turntable/Record PlayerDUAL 506 & CS-506 Turntable/Record PlayerDUAL 506-1 & CS-506-1 Turntable/Record PlayerDUAL 508 & CS-508 Turntable/Record PlayerDUAL 528 & CS-528 Turntable/Record PlayerDUAL 607 & CS-607 Turntable/Record PlayerDual 617Q & CS-617Q Turntable/Record PlayerDual 627Q & CS-627Q Turntable/Record PlayerDual 708Q & CS-708Q Turntable/Record PlayerDual 728Q & CS-728Q Turntable/Record PlayerDual 741Q & CS-741Q Turntable/Record PlayerDual 1254 & CS-1254 Turntable/Record PlayerDUAL 1258 & CS-1258 Turntable/Record PlayerDUAL 1268 & CS-1268 Turntable/Record Player
OTHERS? Yes if you have a visual match to your old one, free exchange if needed.
TECHNICAL DATA
Output voltage at 1000 Hz, 5cm/sec.
4 mV
Channel balance at 1 kHz
1.5 dB
Channel separation at 1 kHz
22 dB
Channel separation at 15 kHz
15 dB
Frequency range
20Hz - 22,000 Hz
Frequency response
20Hz - 20,000 Hz + 3 / - 1 dB
FIM distortion at recommendedtracking force, DIN 45.542
< 1%
Tracking ability at 315Hz atrecommended tracking force
70 µm
Compliance, dynamic, lateral
25 µm/mN
Stylus type
Elliptical
Stylus tip radius
r/R 8/18 µm
Equivalent stylus tip mass
0.5 mg
Tracking force, recommended
1.75g (17.5 mN)
Tracking angle
20°
Internal impedance, DC resistance
1 kOhm
Internal inductance
580 mH
Recommended load resistance
47 kOhm
Recommended load capacitance
200-400 pF
Cartridge colour, body/stylus
Black/Black
Cartridge weight
5 g
Replacement stylus unit
Stylus 10 (a.k.a. STY-10)
