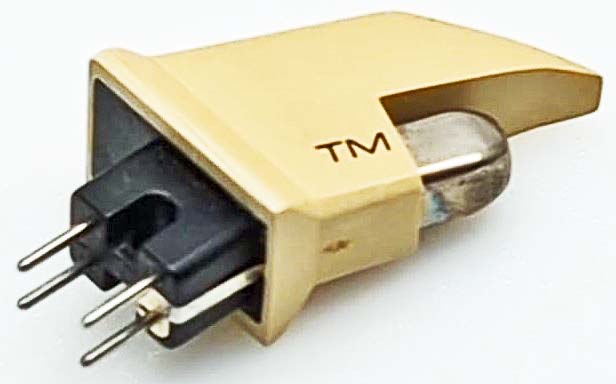

The Bliss T4P-30 is a Pmount magnetic cartridge (MM) that uses a hybrid mix of both legacy and new Ortofon parts to fill the needs of T4P turntable owners who want great Ortofon sound from their P-mount player even though Ortofon no longer supports/makes T4P cartridges. You will receive a N.O.S. or used cartridge that has been professionally tested/recertified by our senior tech along with your brand new genuine Ortofon Stylus30.
with an Nude (natural) Fine Line shaped stylus that is a great foray into the world of HiFi, based off of the proven and time-tested OM series. The OMP 30 is designed for use with P-Mount (T4P) type tonearms as generally found on linear tracking type turntables.
TECHNICAL DATA
Output voltage at 1000 Hz,5cm/sec.
4 mV
Channel balance at 1 kHz
2 dB
Channel separation at 1 kHz
22 dB
Channel separation at 15 kHz
15 dB
Frequency range at - 3dB
20-25.000 Hz
Frequency response
20-20.000 Hz ± 2 dB
FIM distortion at recommendedtracking force, DIN 45.542
< 1%
Tracking ability at 315Hz atrecommended tracking force
65 µm
Compliance, dynamic, lateral
25 µm/mN
Stylus type
Stylus tip radius
r/R 8/18 µm
Equivalent stylus tip mass
0,5 mg
Tracking force range
1,25-1,75 g (12,5-17,5 mN)
Tracking force, recommended
1,25 g (12,5 mN)
Tracking angle
20°
Internal impedance, DC resistance
approx. 700 Ohm
Internal inductance
450 mH
Recommended load resistance
47 kOhm
Recommended load capacitance
200-600 pF
Cartridge colour, body/stylus
Black/Black
Cartridge weight
6 g
Replacement stylus unit
Stylus 30
