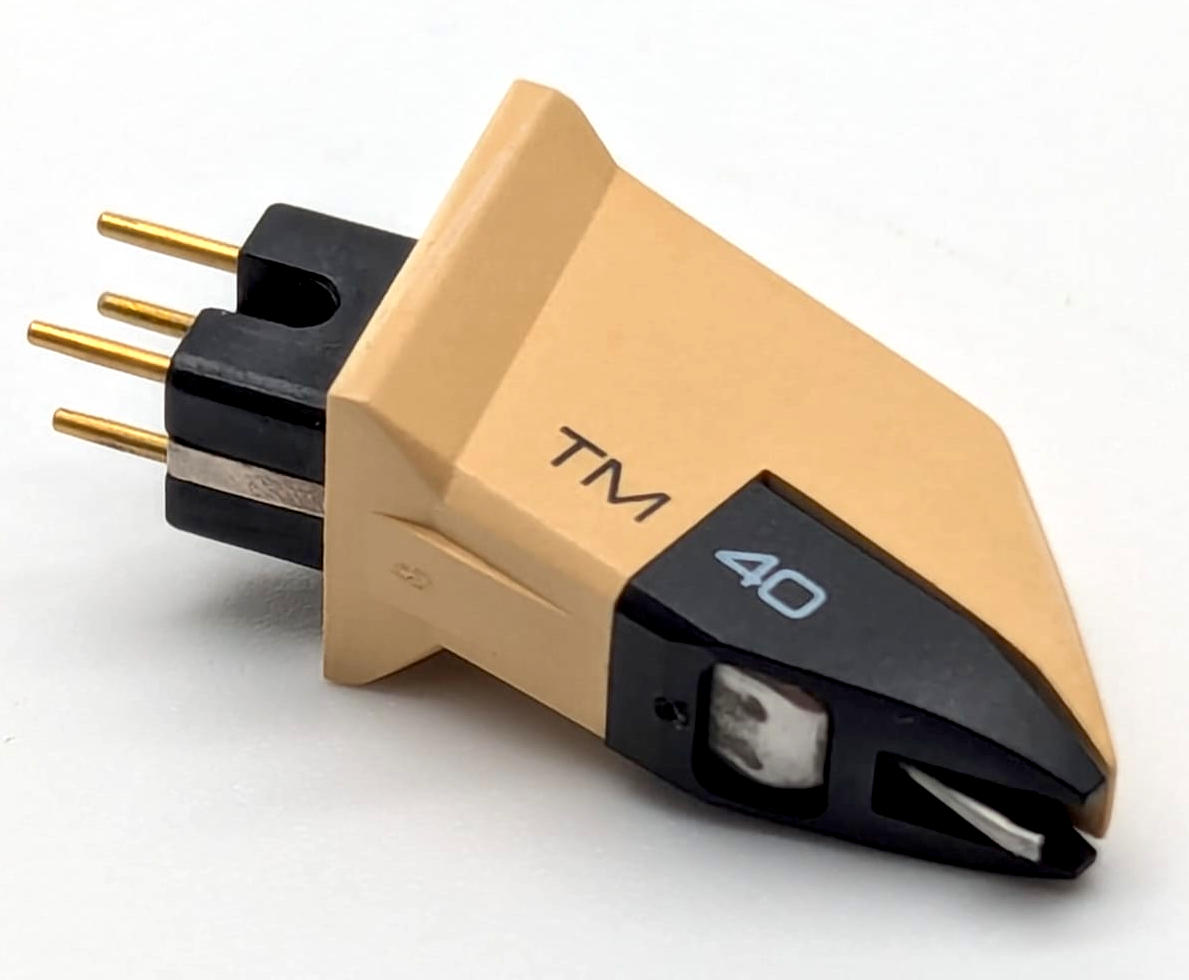

The Bliss T4P-40 is a Pmount magnetic cartridge (MM) that uses a hybrid mix of both legacy and new Ortofon parts to fill the needs of T4P turntable owners who want the very best Ortofon sound possible from their P-mount player even though Ortofon no longer supports/makes T4P cartridges. You will receive a N.O.S. or used cartridge that has been professionally tested/recertified by our senior tech along with your brand new genuine Ortofon Stylus40.
With its Nude (natural) "Fritz Gyger 70" shaped stylus it is the top of the line choice by far for hi end Pmount turntables. This product is the highest standard available when combining an Ortofon Pmount series cartridge with Ortofon's Stylus 40. The Bliss "T4P-40" is designed for use with P-Mount (T4P) type tonearms as generally found on linear tracking type turntables. This item is 100% genuine Ortofon but is shipped in t-tn/bliss packaging. "TM 40" is in quotes everywhere because while everything is genuine Ortofon they never marketed a TM40 product as such so far as we know. So this offering of a N.O.S. or used/tested cartridge with a new Stylus 40, is a unique solution for those wanting the very best out of their legacy P-mount/T4P turntable.
TECHNICAL DATA
Output voltage at 1000 Hz,5cm/sec.
4 mV
Channel balance at 1 kHz
2 dB
Channel separation at 1 kHz
22 dB
Channel separation at 15 kHz
15 dB
Frequency range at - 3dB
20-30.000 Hz
Frequency response
20-29.000 Hz ± 2 dB
FIM distortion at recommendedtracking force, DIN 45.542
< 1%
Tracking ability at 315Hz atrecommended tracking force
65 µm
Compliance, dynamic, lateral
25 µm/mN
Stylus type
Stylus tip radius
r/R 8/18 µm
Equivalent stylus tip mass
0,5 mg
Tracking force range
1,25-1,75 g (12,5-17,5 mN)
Tracking force, recommended
1,25 g (12,5 mN)
Tracking angle
20°
Internal impedance, DC resistance
Approx 700 Ohms
Internal inductance
450 mH
Recommended load resistance
47 kOhm
Recommended load capacitance
200-600 pF
Cartridge colour, body/stylus
Black/Black
Cartridge weight
6 g
